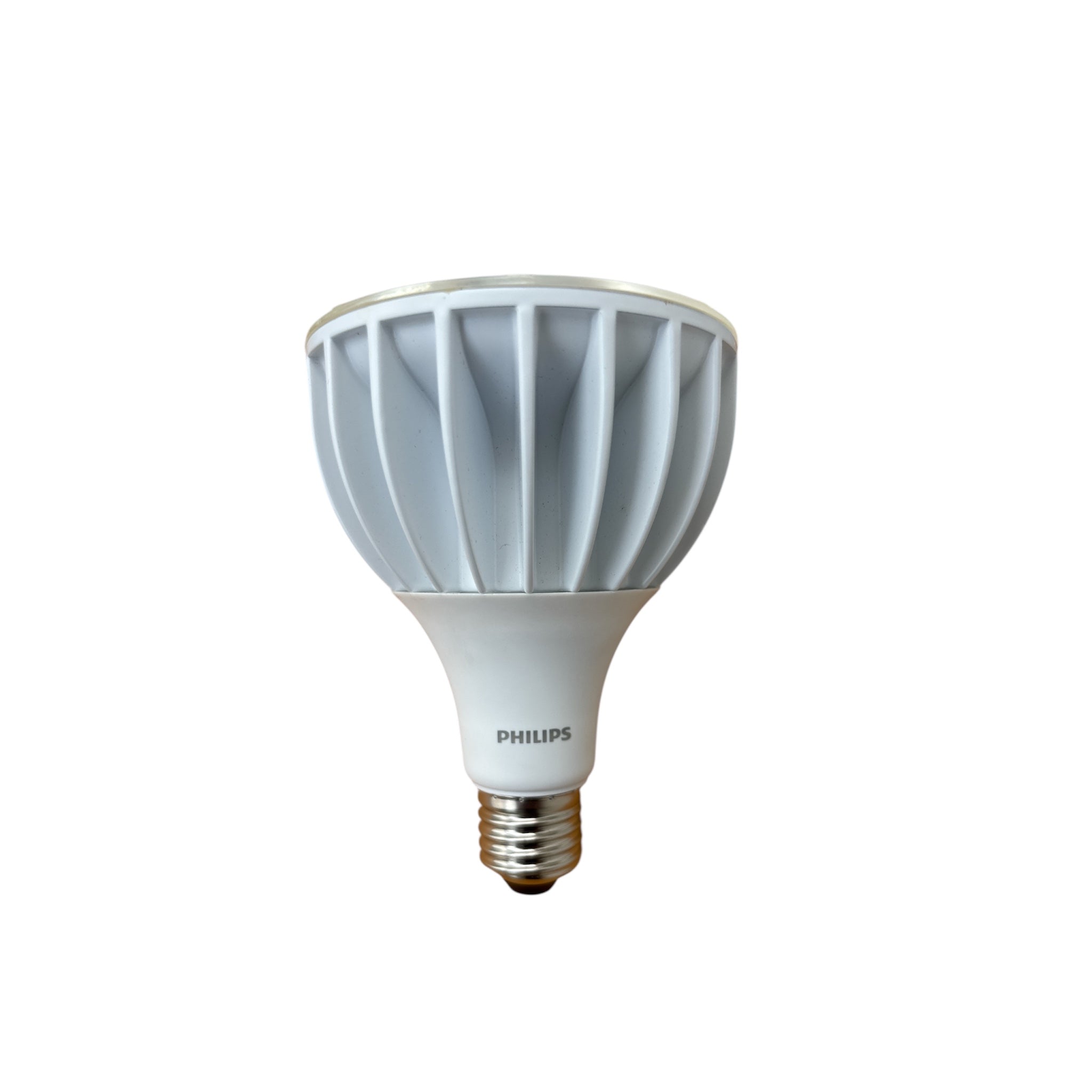

Master LED PAR30L 20W 30D 830

Philips High Lumen PAR30L integrates a leading COB LED light source and a
compact high efficiency driver into a traditional CDM PAR30L form-factor. It brings
out the beauty in merchandise with brighter, high performance lighting. Additionally,
the lamp features an over temperature protection (OTP) to ensure a long operating
life time.

Product data
General Information
Cap-Base E27 [E27]
Nominal lifetime 25,000 hour(s)
Switching Cycle 50,000
Lighting Technology LED
EU RoHS compliant Yes

Light Technical
Color Code 830 [CCT of 3000K]
Beam Angle (Nom) 30 degree(s)
Luminous Flux 1,800 lm
Luminous Intensity (Nom) 5,400 cd
Color Designation White (WH)
Correlated Color Temperature (Nom) 3000 K
Luminous Efficacy (rated) (Nom) 90.00 lm/W
Color Consistency <6
Color rendering index (CRI) 82
LLMF At End Of Nominal Lifetime (Nom) 70 %

Operating and Electrical
Line Frequency 50 to 60 Hz
Input Frequency 50 to 60 Hz
Power Consumption 20 W
Lamp Current (Nom) 95 mA
Wattage Equivalent 35 W
Starting Time (Nom) 0.5 s
Warm-up time to 60% light 0.5 s
Power Factor (Fraction) 0.9
Voltage (Nom) 220-240 V

Temperature
T-Case Maximum (Nom) 67 °C

Controls and Dimming
Dimmable No

Mechanical and Housing
Bulb Shape PAR30L [PAR 3.75 inch/95mm Long
